Servocity Arm Winch

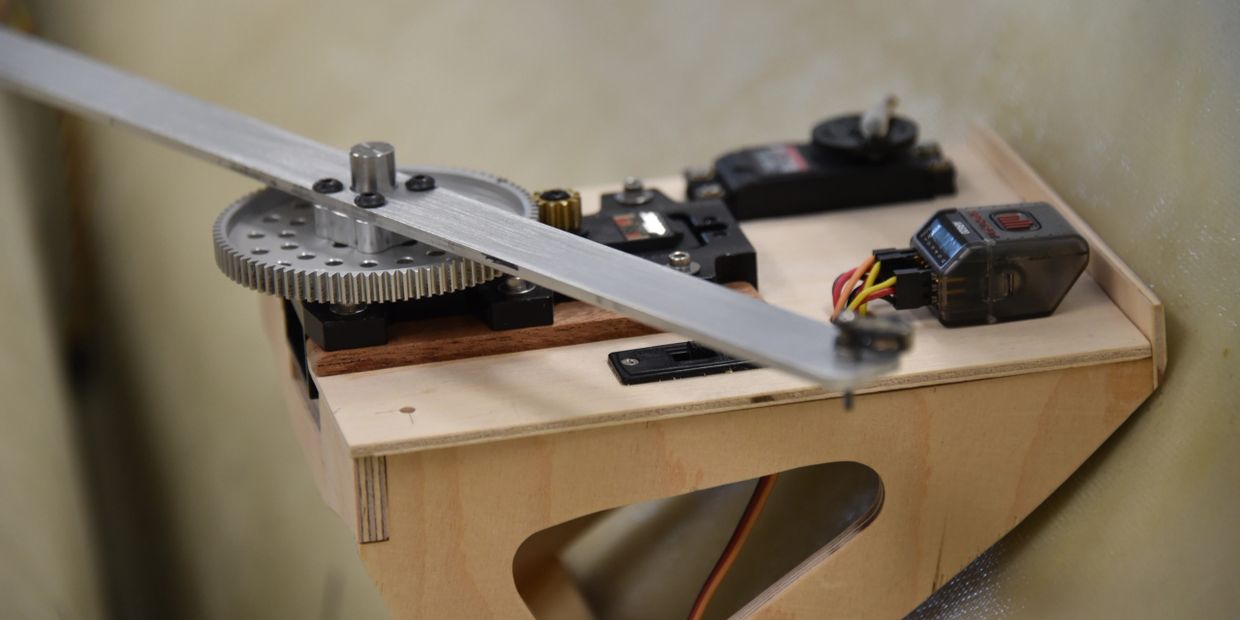

Servocity Arm Winch in Servo Tray
Photo courtesy of Bob Eger

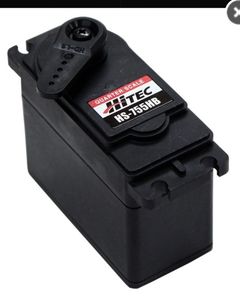

For those skippers who are asking about Servo City arm winches, here is the information. Servocity contact information, email Sales@ServoCity.com phone 620-221-0123. Rudder servo is an HS-755HB, gear ratio is 7:1,TM-SG 20-70 servo gearbox in stock rotation. You must specify that you want the winch programmed for 180 degrees of rotation. This will produce about 32304oz-inches of torque which is plenty for the large J models. Power is provided from a 6V gel cell battery and you must use a Y harness to get full power to the winch. The cost of the winch assembled is about $260. Just a personal observation, it is well worth the assembly fee to have them do the assembly.
SG20-70 Series Servo Gearbox (7:1 Ratio, 360° Rotation, 3304 oz-in, 0.98 sec/60°)
All top mount gear boxes have been discontinued and replaced with a universal Channel mount gearbox
